Un nouveau point d’accès Wi-Fi chez Zyxel.

La marque qui propose des produits réseaux Wi-Fi orientés petite entreprise propose une solution Wi-Fi, le « WAC6500 » ou « Smart Antenna Wi-Fi Access Point ».

Ce nouveau venu est en mesure de proposer une solution Wi-Fi exploitant les normes 802.11a/b/g/n/ac et opérant sur les deux gammes de fréquences 2.4 et 5 GHz.



Plus qu’un point d’accès ou répéteur, c’est une gamme de trois modèles que propose Zyxel avec le « WAC6500 » à savoir les WAC6502D-E, WAC6502D-S & WAC6503D-S.

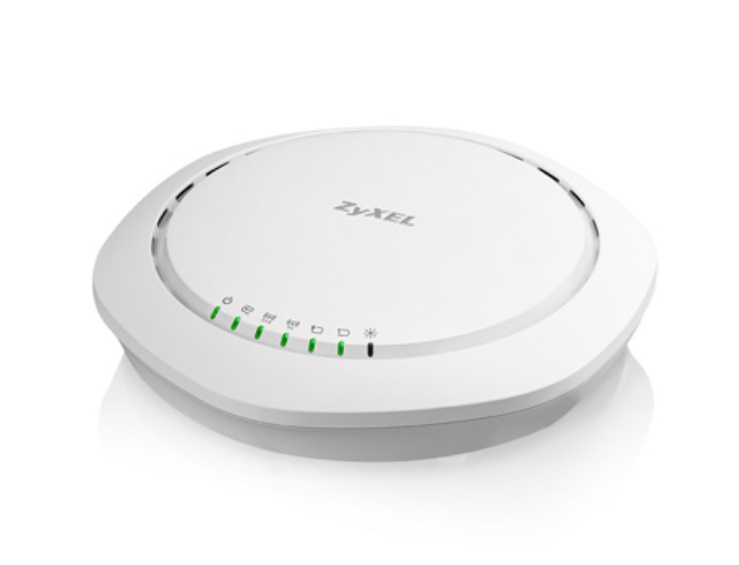

On notera que son design ressemble à un détecteur incendie pour passer le plus inaperçu possible au sein de l’entreprise ou les bureaux ou il sera placé.

Mais pour faire plus simple et ne rien oublier, voici les caractéristiques constructeur :

Model WAC6503D-S WAC6502D-S WAC6502D-E
Product description 802.11ac Dual Radio
Smart Antenna
3×3 Access Point
802.11ac Dual Radio
Smart Antenna
2×2 Access Point
802.11ac Dual Radio
External antenna
2×2 Access Point
Main Design
Wireless frequency 2.4 and 5 GHz 2.4 and 5 GHz 2.4 and 5 GHz
Radio 2 2 2
RF Specifications
Frequency band 2.4 GHz (IEEE 802.11 b/g/n)

  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
  • Taiwan (TW): 2.412 to 2.462 GHz

5 GHz (IEEE 802.11 a/n/ac)

  • USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
  • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
  • Taiwan (TW): 5.25 to 5.35 GHz; 5.725 to 5.850 GHz
802.11n/ac premium features
  • 3×3 Multiple-Input Multiple- Output (MIMO) with three spatial streams
  • Maximal Ratio Combining (MRC)
  • 20-, 40- and 80-MHz channel
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • Cyclic Delay Diversity (CSD) support
  • Maximum Likehood Demodulation (MLD) support
  • Low Density Parity Check (LDPC) support
  • 2×2 Multiple-Input Multiple-Output (MIMO) with two spatial streams
  • Maximal Ratio Combining (MRC)
  • 20-, 40- and 80-MHz channels
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • Cyclic Delay Diversity (CSD) support
  • Maximum Likehood Demodulation (MLD) support
  • Low Density Parity Check (LDPC) support
Typical transmit output power(Conducted) FCC 11b/g 29 28 28
FCC 11g/n 29 28 28
FCC 11a 30 28 28
FCC 11n/a (ac) 30 28 28
EU 11b/g 15 14 14
EU 11g/n 15 14 14
EU 11a 23 22 22
EU 11n/a (ac) 23 22 22
Number of antenna 6 embedded smart antenna 4 embedded smart antenna 4 external
Antenna gain 4 dBi @2.4 GHz
6 dBi @5 GHz
4 dBi @2.4 GHz
6 dBi @5 GHz
5 dBi @2.4 GHz
7 dBi @5 GHz
Support data rate
  • 802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11n: up to 450 Mbps in MCS15 (40 MHz)
  • 802.11ac: up to 1300 Mbps in MCS9 (80 MHz)
  • 802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
  • 802.11n: up to 300 Mbps in MCS15 (40 MHz)
  • 802.11ac: up to 866 Mbps in MCS9 (80 MHz)
Receive sensitivity Min. Rx sensitivity up to -102 dBm Min. Rx sensitivity up to -100 dBm Min. Rx sensitivity up to -100 dBm
Interfaces
Number of 10/100/1000M LAN 2 2 2
Console Port RJ-45 serial RJ-45 serial RJ-45 serial
PoE Yes Yes Yes
PoE power draw 17.04 W 15.12 W 15.12 W
WLAN Features
WLAN maximum throughput Up to 900 Mbps Up to 600 Mbps Up to 600 Mbps
Mesh AP (By license)*1 Yes*1 Yes*1 Yes*1
Mesh AP for multiple SSID with VLAN(through tunnel mode)*1 Yes*1 Yes*1 Yes*1
Wireless Security
WEP Yes Yes Yes
WPA/WPA2-PSK Yes Yes Yes
WPA/WPA2-Enterprise Yes Yes Yes
WMM (Wi-Fi certified) Yes Yes Yes
EAP types EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM
IEEE 802.1X Yes Yes Yes
Number of SSID Yes Yes Yes
Web authentication*1 Yes Yes Yes
MAC filtering Yes Yes Yes
Layer-2 isolation Yes Yes Yes
RADIUS authentication Yes Yes Yes
Microsoft AD authentication*1 Yes Yes Yes
LDAP authentication*1 Yes Yes Yes
MAC authentication*1 Yes Yes Yes
Rogue AP detection*1 Yes Yes Yes
Rogue AP containment*1 Yes Yes Yes
Network
IPv6 host Yes Yes Yes
VLANs Yes Yes Yes
DHCP client Yes Yes Yes
QoS (PG)
WMM Yes Yes Yes
WMM power save Yes Yes Yes
DiffServ marking Yes Yes Yes
Management
ZON utility*2
  • Discovery of ZyXEL switches, APs and gateways*3
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device reboot
    • Device locating
    • Web GUI access
    • Firmware upgrade
    • Password configuration
    • One-click quick association with ZyXEL AP Configurator (ZAC)
Smart connect
  • Discover neighboring devices
  • One-click remote management access to the neighboring ZyXEL devices
ZyXEL AP configurator*2
  • Batch AP configuration
  • Batch AP firmware upgrade
  • Batch AP profile backup
ZyXEL wireless optimizer
  • Wi-Fi AP Planning
  • Wi-Fi coverage detection
  • Wireless health management
Standalone AP mode Yes Yes Yes
Managed AP mode Yes Yes Yes
CLI Yes Yes Yes
Web UI Yes Yes Yes
SNMP v1/2c/3 v1/2c/3 v1/2c/3
Others
Plenum rating Yes Yes Yes
Kensington lock support Yes Yes Yes
Input power
  • DC input: 12 VDC 2 A; PoE: 802.3at compliant
  • (Power adapter is sold separately)
MTBF (hr) 1,202,489 1,407,374 1,427,755
Standard Compliance
Ethernet IEEE 802.3

  • IEEE 802.3u
  • IEEE 802.11ab
  • IEEE 802.3au
  • IEEE 802.3az
  • IEEE 802.3at
PoE IEEE 802.3at*4
WLAN
  • 802.11b: DBPSK, DQPSK, CCK
  • 802.11g: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11a: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
  • 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Certifications
Radio FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022,
EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety EN 60950-1, IEC 60950-1, BSMI CNS14336-1
Physical Specifications
Item imensions (WxDxH)(mm/in.) 236 x 227 x 62/9.28 x 8.95 x 2.43 236 x 227 x 62/9.28 x 8.95 x 2.43 236 x 227 x 62/9.28 x 8.95 x 2.43
Weight (g/lb.) 982/2.17 961/2.12 841/1.86
Packing Dimensions (WxDxH)(mm/in.) 308 x 323 x 127/12.13 x 12.72 x 5.00 308 x 323 x 127/12.13 x 12.72 x 5.00 308 x 323 x 127/12.13 x 12.72 x 5.00
Weight (g/lb.) 1743/3.85 1722/3.81 1699/3.75
Included accessories
  • Ceiling mount plate
  • Mounting screws
  • Ceiling mount plate
  • Mounting screws
  • External antenna
  • Ceiling mount plate
  • Mounting screws

 ZyXEL_WAC6500_Series
